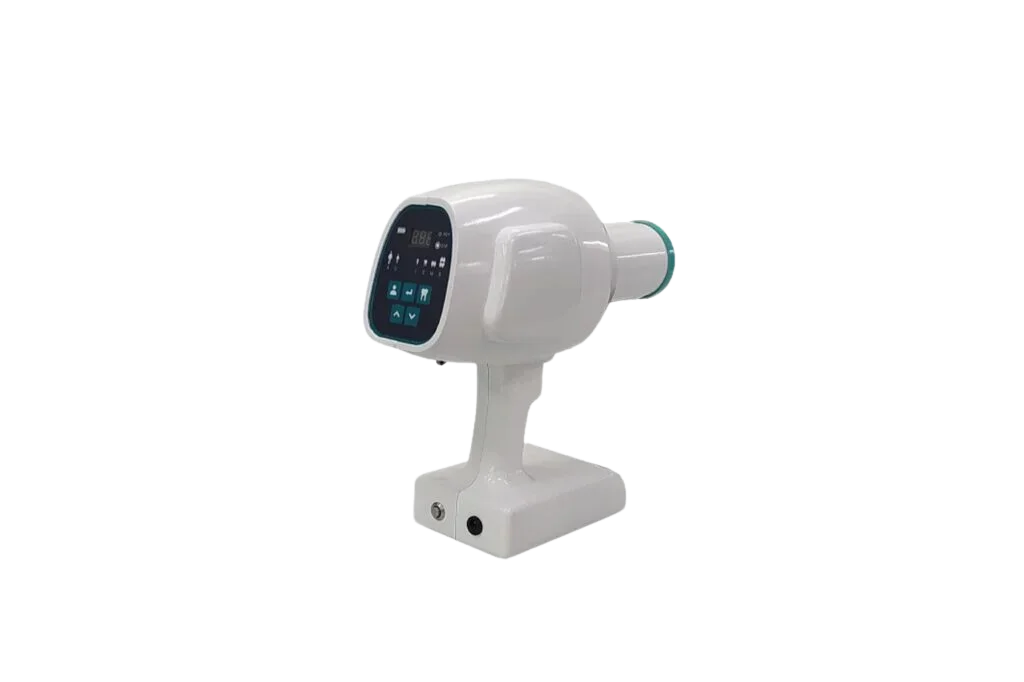

HIGH FREQUENCY PORTABLE DENTAL X-RAY
XRD70
The high frequency portable Dental X-Ray consists of an inverter and oil-filled which houses the high voltage transformer and tube. It has been designed and developed for OEM application in the high radiation output allows for lower kV per exposure, shorter exposure and superior imaging.
Download Datasheet
TECHNICAL SPECIFICATIONS
| PARAMETER | SPECIFICATION |
|---|---|
| Battery Voltage | 21.6 Vdc |
| Battery Type | Li-ion Replaceable |
| Battery Charger | 26V, 750mA |
| Input Voltage for Battery Charger | 100 – 265V AC, 50Hz |
| Maximum Duty Cycle | 1:60 |
| Output Power | 150W nominal @ 70kV, 2.3mA |
| Output kV | 70kV DC |
| Tube Current | 2.3mA |
| Focal Spot | 0.4 mm |
| Exposure Time | 0.05s to 1.0s |
| Exposures per Charge | More Than 200 |
| Source-Skin Distance | 200mm Fixed |
| Irradiated Field | 60 mm round |
| Weight> | 2.5 Kg |
