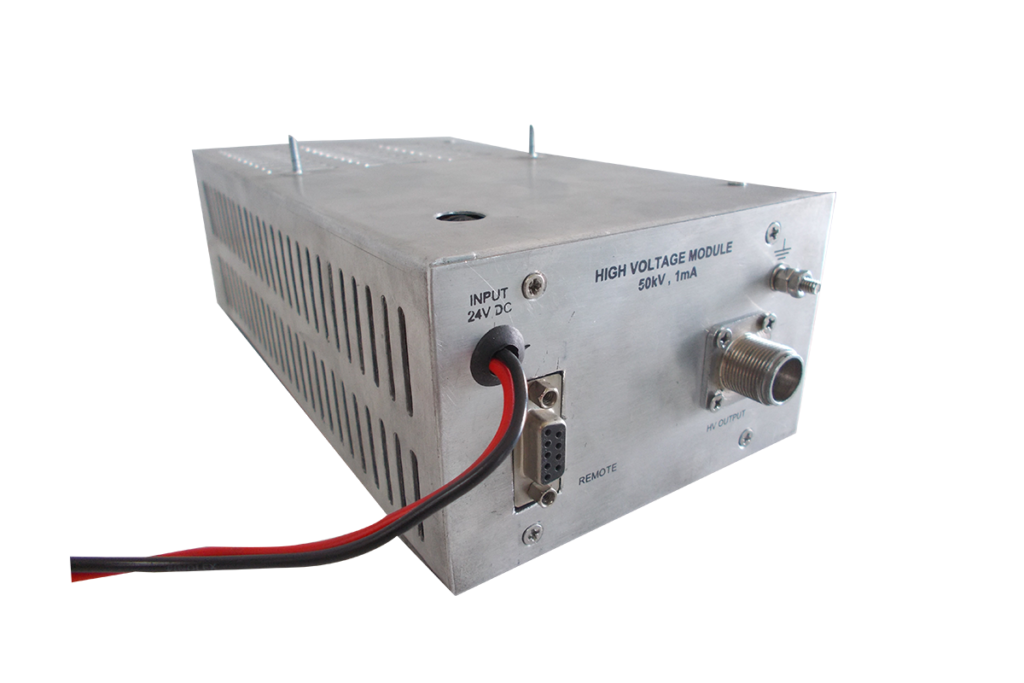

REGULATED HIGH VOLTAGE MODULE
10kV to 50kV, 1mA
REGULATED HIGH VOLTAGE MODULE
10kV to 50kV, 1mA
This series of power supplies incorporate the high frequency switch mode technology to give highly regulated chassis mountable modular units with kV range varying from 10kV to 50kV catering to a wide variety of scientific and industrial applications that include XRF instruments for elemental analysis, electro-spinning, hipot testing electrophoresis, cable testing, etc.
Download Datasheet
TECHNICAL SPECIFICATIONS
| PARAMETER | SPECIFICATION |
|---|---|
| Input Voltage | 24V DC ± 10% |
| Output Voltage* | 0 to 10/20/30/40/50kV DC |
| Output Current* | 0 to 1mA |
| Polarity* | Positive / Negative |
| Line Regulation | <0.05% for±10% variation in input voltage |
| Load Regulation | <0.1% for 10 to 100%load variation |
| Stability | <0.01% hour after 1 hour warm up |
| Protections | Against overload, arc and short-circuit During short circuit, internal circuitry limits the short circuit current |
| Front Panel | 24V DC input through 1.0sqm PVC wires Fuse holder with fuse (on top plate) RF connector for HV output 9 pin D-connector for remote control Stud for grounding the unit |
| Size | 5” x 9” x 3” (W x D x H) |
| Weight | 2.5kg |
| Output cable | 26” of HV DC cable |
*Optional. To be specified by the user.
